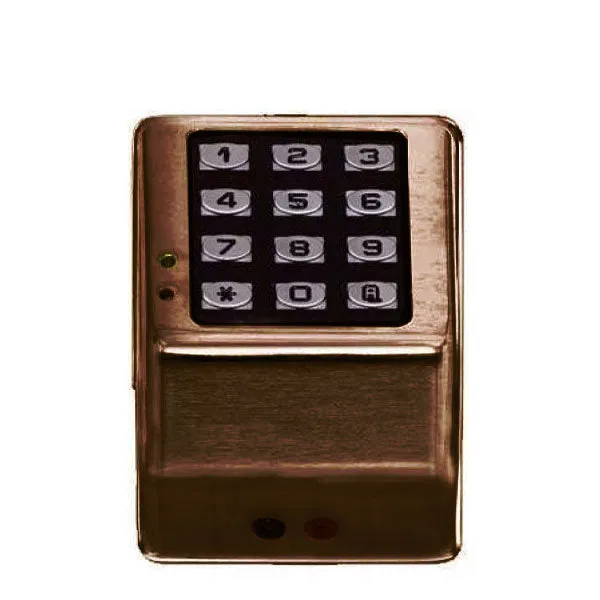

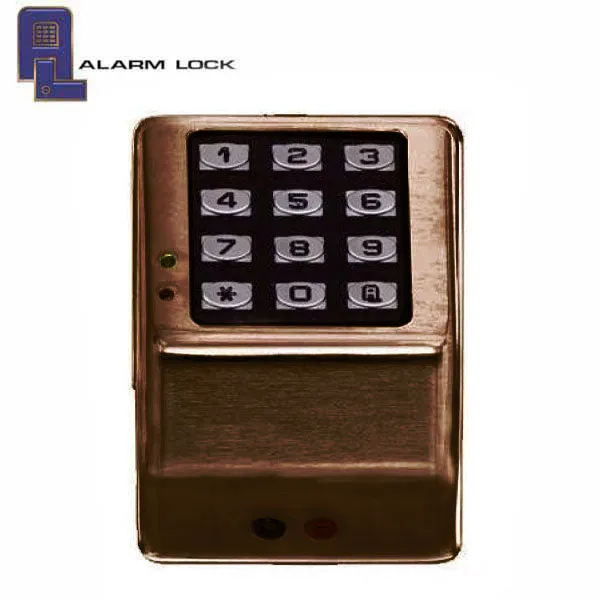

This Weatherproof Digital Access Control Keypad enables access via pin code as well as most HID cards and keyfobs while keeping an audit trail of up to 40,000 events with a schedule and real-time clock.
More Information Below
SPECIFICATIONS:
| FUNCTION | Weatherproof Digital Access Control Keypads w/ Audit Trail |
| AUDIT TRAIL | 500 event schedule, real-time clock, and up to 40,000 event audit trail |
| WALL MOUNT | Single Gang Mounting |
| WIRING | The unit provides flying leads for power, relays, tamper, and remote release |
| I/O SPECS |
2 Form C relays 5AMP minimum contact rating. Red and green LED indicators. 1 remote release input. Sound and tamper |
| POWER | Operating Voltage 12-24 VAC/DC Field Selectable |
| PROGRAMMABLE | Keypad or PC programmable |
| TAMPER SUPERVISED | reportable to alarm system |
| USER CODES | 2000 PIN user codes, multilevel security access control keypads |
| TIMED EGRESS INPUT | Selectable door open times 5, 10 or 15 seconds |
| WEATHERPROOF | -31˚ to 151˚F (-35˚ to 66˚C) |
| FINISH | 10B Durondic Bronze |
